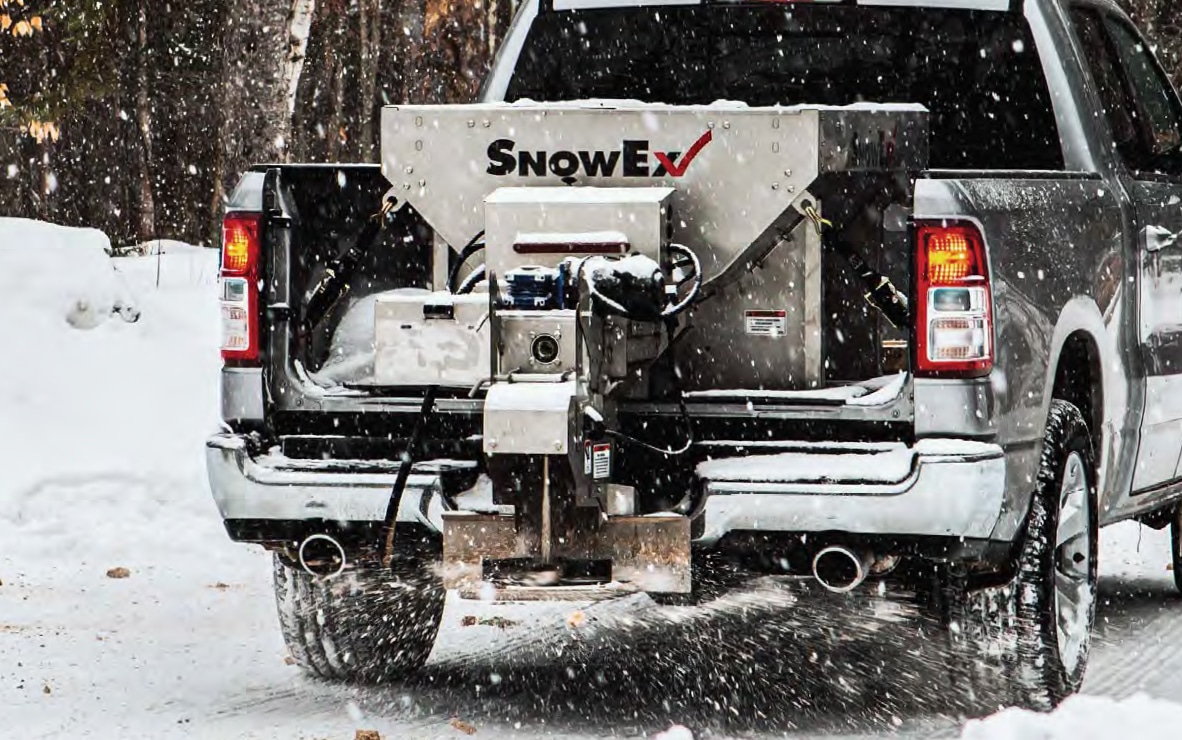

12140 Helixx stainless steel spreader

The HELIXX™ 535LTR stainless steel hopper spreader is right-sized for today’s most popular half-ton and light-duty trucks. Like the full-sized HELIXX units, this model provides excellent material flow, but in a more compact size, that’s better suited to handle smaller spaces and jobs. The patent-pending corkscrew – or “helix” – design of the HELIXX material...

Product Description

The HELIXX™ 535LTR stainless steel hopper spreader is right-sized for today’s most popular half-ton and light-duty trucks. Like the full-sized HELIXX units, this model provides excellent material flow, but in a more compact size, that’s better suited to handle smaller spaces and jobs.

The patent-pending corkscrew – or “helix” – design of the HELIXX material delivery system is optimized for efficient and cost-effective use of salt and was designed to operate in the target range for

...

The HELIXX™ 535LTR stainless steel hopper spreader is right-sized for today’s most popular half-ton and light-duty trucks. Like the full-sized HELIXX units, this model provides excellent material flow, but in a more compact size, that’s better suited to handle smaller spaces and jobs.

The patent-pending corkscrew – or “helix” – design of the HELIXX material delivery system is optimized for efficient and cost-effective use of salt and was designed to operate in the target range for salt spreading best practices. The innovative design helps prevent clogs and delivers a material flow superior to traditional augers.

STAINLESS STEEL CONSTRUCTION
Hopper and frame are constructed of corrosion-resistant stainless steel. The frame features a unique leg and sill design to form a ridged backbone structure for greater durability, and riveted construction provides consistent quality joints.

Spreading Guide

  • Dry free-flowing salt
  • Moist salt (Rock salt)
  • Sand
  • 50:50 sand/salt mix
  • Bagged ice melters
Read More
  • Features
  • Specifications
  • Options

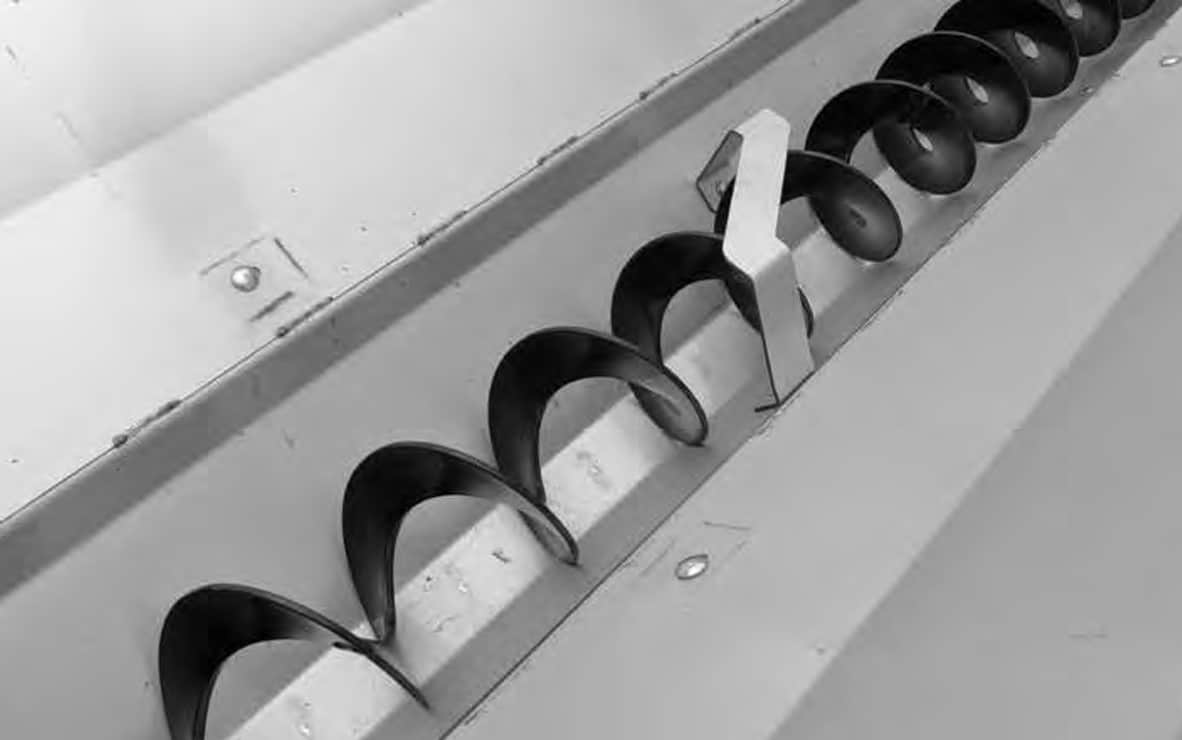

  • PATENT PENDING HELIXX CORKSCREW AUGER DELIVERY SYSTEM
  1. Full-length auger for even unloading with no clogging
  • CAB FORWARD HOPPER
  1. Delivers better payload distribution to reduce stress on the truck.
  • STAINLESS STEEL
  1. hopper and frame are constructed of corrosion-resistant stainless steel. The frame features a unique leg and sill design to form a ridged backbone structure for greater durability, and riveted construction provides consistent, quality joints.
  • 1/2 HORSEPOWER 12-VOLT ELECTRIC DRIVE SYSTEM
  1. Low maintenance, high-torque, commercial continuous-duty electric motor.
  2. Weather-resistant sealed unit for durability.
  3. Two grease fittings (Zirk fittings) for easy maintenance.
  4. Drives a variable-pitch solid-shaft auger.

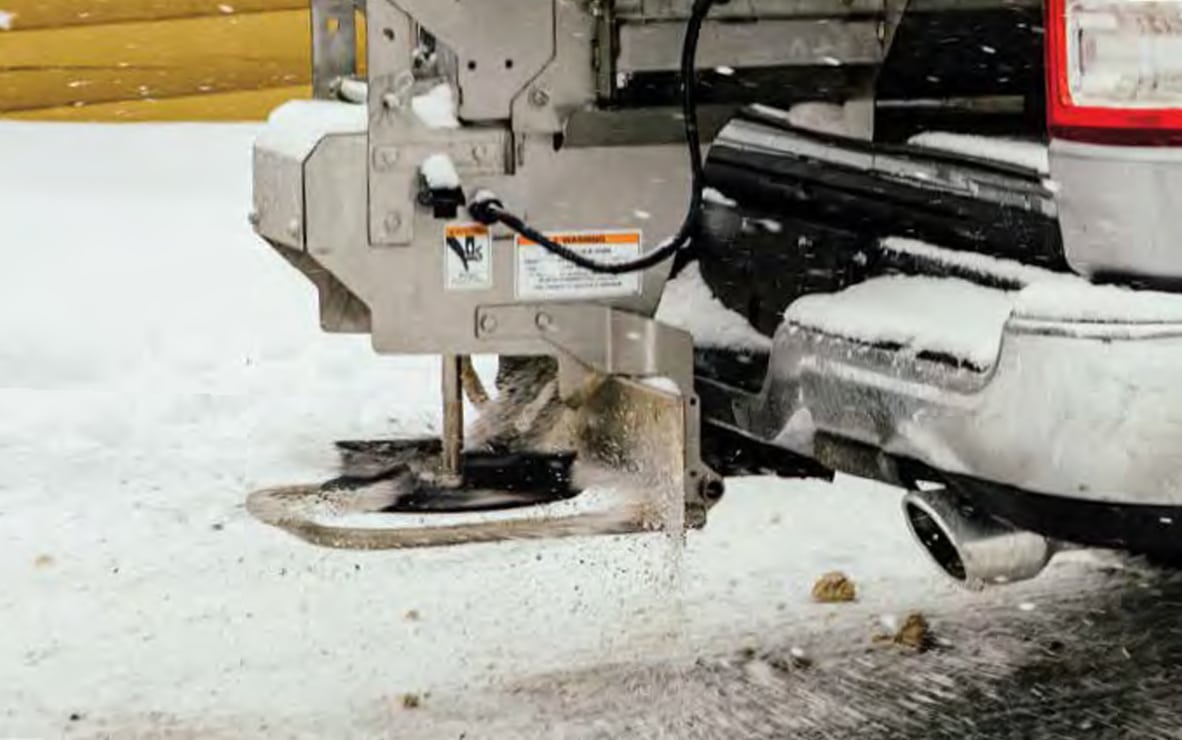

  • QUICK-CONNECT SPINNER ASSEMBLY WITH NO, BLAST STARTUP
  1. Designed for easy installation and removal.
  2. Allows use of towbar hitch when removed.
  3. Features durable corrosion-resistant stainless steel.
  4. For maximum material placement and control, the spinner doesn’t blast upon startup, instead starting at the desired speed setting on the dial.
  • INDEPENDENT SPINNER & AUGER CONTROL
  1. Both models are complete with an in-cab dual variable-speed controller, for independent speed adjustment of the spinner & auger. Using this digital controller allows for precise material placement.
  • TOP SCREEN
  1. Prevents large frozen chunks of material from entering the hopper
  2. Provided as standard equipment.
  • FITTED TARP
  1. Provides protection from water ingress, for clog-free distribution of material.
  • NON-COMBUSTIBLE HD AUTOMOTIVE HARNESS
  1. Only requires a single 4-pin wire routed into the cab to install the compact control.
  • WORK LIGHT
  1. Offers better visibility at the rear of spreader during night applications.
  • Empty Weight 153 kg
  • Overall Length 205 cm
  • Overall Height 114 cm
  • Overall Width 109 cm
  • Min. Bed Length Required 112 cm
  • Hopper Length 138 cm
  • Hopper Height 69.2 cm
  • Hopper Width 109 cm
  • Capacity (Volume) 535 litres
  • Capacity (Weight) 680 kg
  • Spreading Width 9.14 m

Extension Collar

An extension collar is available as an accessory to increase material capacity for vehicles that can handle the additional weight. 380 litre extension collars available for the 12140 model.
