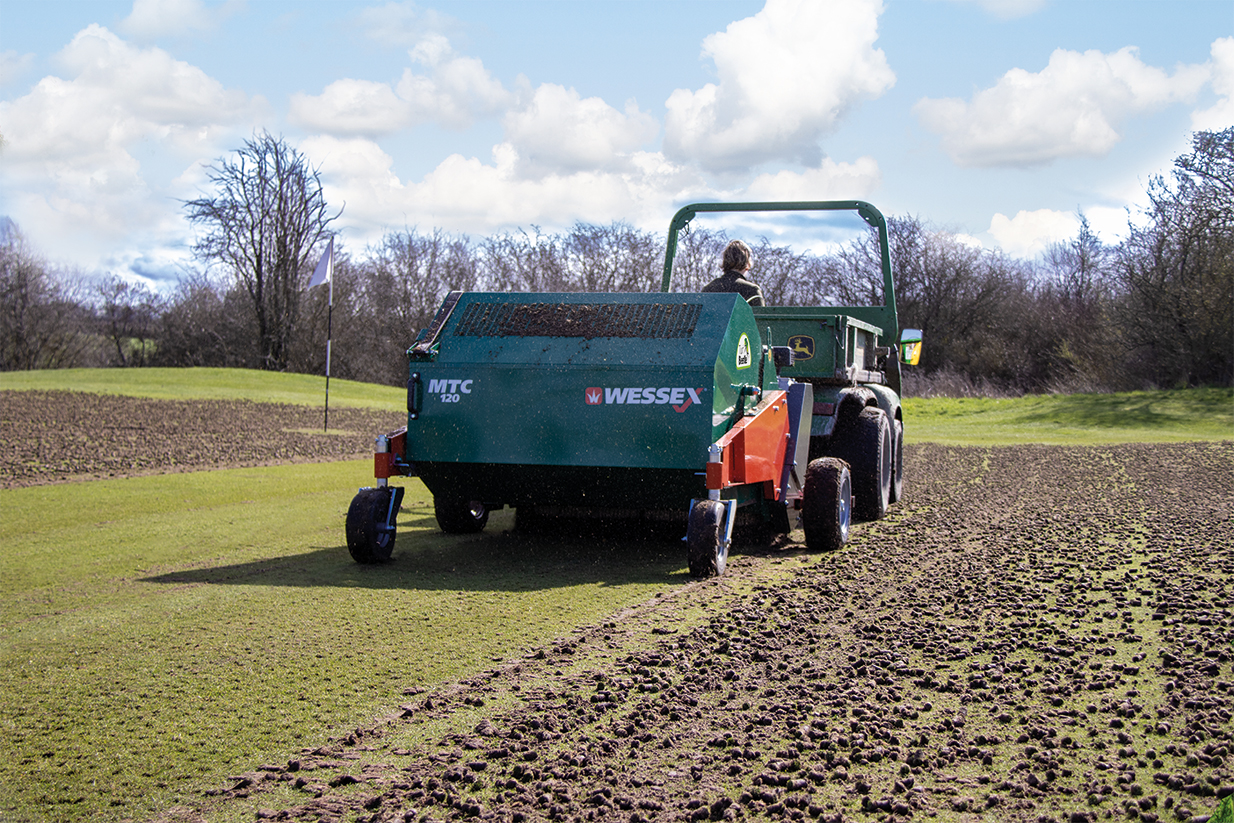

MTC-120-E Self Powered ATV Sweeper Collector

Designed for the maintenance of private estates, parks & large gardens. The Wessex MTC-120-E is an easy to use, yet highly effective machine which is self powered via a Loncin 5.5hp engine, making it the perfect tool to pair with an ATV or UTV.

Product Description

Designed for the maintenance of private estates, parks & large gardens, the  MTC-120-E ATV sweeper collector is ideal for collecting autumn leaves, grass clippings & scarifying debris. Choose from two options: self-powered with a 5.5hp Loncin engine, or PTO driven and trailed. When full, the hopper is rolled over by means of a hand-operated winch to give a clean discharge on the ground. The hopper is finely balanced on the pivot point to ensure an

...

Designed for the maintenance of private estates, parks & large gardens, the  MTC-120-E ATV sweeper collector is ideal for collecting autumn leaves, grass clippings & scarifying debris. Choose from two options: self-powered with a 5.5hp Loncin engine, or PTO driven and trailed. When full, the hopper is rolled over by means of a hand-operated winch to give a clean discharge on the ground. The hopper is finely balanced on the pivot point to ensure an easy roll-over while a spring-loaded pin secures the hopper in position when in operation.

This ATV sweeper can be easily changed into a paddock collector by a brush and tine kit. To see the complete model see here

Read More
  • Features
  • Specifications
  • Manuals & Brochures
  • 5.5HP ENGINE – Easy to start and reliable
  • THROTTLE LEVER – Clips on to ATV rack for user convenience
  • CENTRIFUGAL CLUTCH – Allows the brush rotor to be engaged / disengaged from the seat
  • WHEELS IN-LINE WITH BRUSH ROTOR – Follows ground contours accurately giving a consistent clean sweep
  • SIMPLE SCREW HANDLE – Easy adjustment of brush height
  • FULLY CASTORING REAR WHEELS – Increased manoeuvrability
  • FLOATING DRAWBAR – Allows machine to float over uneven ground with no weight on ball hitch
  • ADJUSTABLE SPRING TINES – Rake through the grass to loosen stubborn horse muck
  • HAND OPERATED WINCH – For ease of emptying
  • STIFF, COURSE BRISTLE – For increased sweeping efficiency in paddock environment
  • SWIVELLING BALL HITCH – Satisfies Health and Safety recommendations
  • Working width 1.2m
  • Overall width 1.85m
  • Hopper capacity 0.7m³ (approx)
  • Weight 317kg

ATV Brochure – Download

MTC Sweeper Collector – Download
